A square bottle gives the label a clear, defined surface—but that also means small positioning errors are easy to notice. If one bottle has the label slightly higher or closer to an edge than the next, the inconsistency is immediately visible.

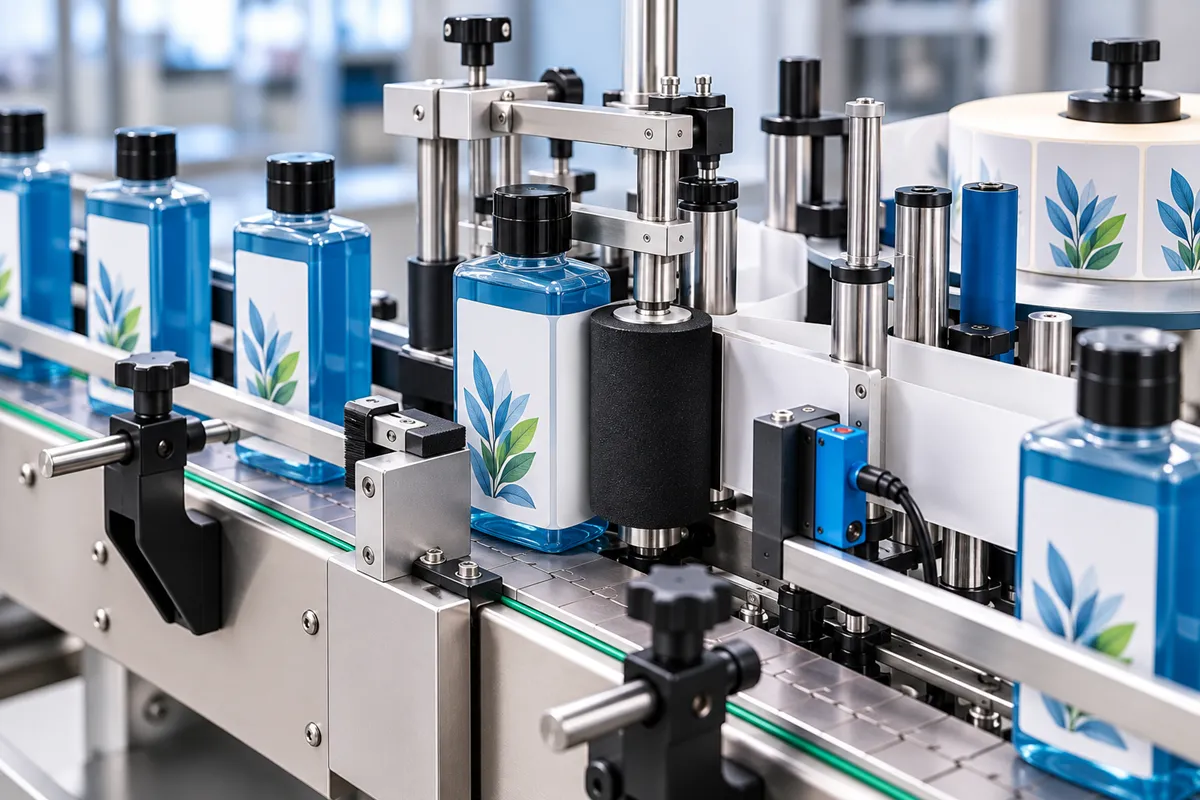

A properly configured Square Bottle Labelling Machine controls the bottle and label during application so that each bottle receives the sticker in a repeatable position.
At Metson Machines, we manufacture sticker labelling machines in Ahmedabad and configure the labelling system according to the bottle dimensions, label position and production requirement.
How Does Accurate Label Placement Work?
Accurate labelling is not achieved by the label applicator alone. Several parts of the machine work together.
1. Controlled Bottle Movement
The bottle travels through the machine on a conveyor. Side guides and the product-handling arrangement help maintain its position as it reaches the labelling point.
For square bottles, this is important because the label needs to meet the intended flat surface correctly.
2. Consistent Label Dispensing
The label roll is fed through the labelling mechanism at a controlled rate. The dispensing arrangement determines when the label leaves the backing material and reaches the bottle.
Consistent dispensing helps maintain repeatable label positioning from one bottle to the next.
3. Sensor-Based Detection
Product detection allows the machine to identify when a bottle reaches the labelling position.
The sensor and control system work together with the dispensing mechanism to coordinate label application with product movement.
4. Application and Pressure
After the label contacts the bottle, an application roller or suitable wiping mechanism presses it against the surface.
This helps the label adhere smoothly and reduces the possibility of lifting or incomplete contact.
What Affects Labelling Accuracy?
The final result depends on more than the machine itself.
| Parameter | Effect on Application |
|---|---|
| Bottle dimensions | Determines product positioning |
| Bottle shape | Affects handling and label contact |
| Label dimensions | Determines application area |
| Label material | Affects dispensing and adhesion |
| Bottle surface | Influences label contact |
| Label position | Determines applicator setup |
| Conveyor movement | Affects product consistency |
| Sensor position | Controls application timing |
| Production speed | Affects machine settings |
| Bottle spacing | Helps maintain consistent application |
This is why we at Metson Machines evaluate the actual bottle and label before finalising the machine configuration.
Single-Side or Front-and-Back Labelling?
The required label arrangement also determines the machine setup.
For one label on a square bottle, a Single Side Sticker Labelling Machine may be suitable.
If the bottle requires labels on two sides, a Double Side Sticker Labelling Machine can be considered.
For separate front and rear labels, our Front and Back Labelling Machine can be configured according to the bottle and label arrangement.
The appropriate solution depends on the actual bottle dimensions and label location.
What Should Be Checked Before Buying?
For a square bottle application, we recommend checking:
- Bottle length and width
- Bottle height
- Bottle material
- Label width and height
- Label position
- Number of labels
- Label roll specification
- Required production output
A product photograph and label sample are particularly useful because the bottle geometry can affect the final machine setup.
Technical Selection Table
| Technical Requirement | To Be Confirmed |
|---|---|
| Bottle shape | Square / rectangular |
| Bottle length | Actual dimension |
| Bottle width | Actual dimension |
| Bottle height | Actual dimension |
| Label size | Actual dimensions |
| Label position | Front / side / front & back |
| Number of labels | Application dependent |
| Label material | Actual specification |
| Required speed | Production requirement |
| Machine configuration | Based on application |
Exact specifications such as machine speed, power, dimensions and operating range depend on the selected model and actual application. We confirm these parameters before quotation.
Why Choose Metson Machines?
At Metson Machines, we manufacture our sticker labelling machines in Ahmedabad, Gujarat.
Our range includes:
- Single Side Sticker Labelling Machines
- Double Side Sticker Labelling Machines
- Bottle Sticker Labelling Machines
- Front and Back Labelling Machines
- Top Label Applicator Machines
- Hologram Label Applicator Machines
Because we manufacture the machines ourselves, we can work directly with you on the bottle, label and application requirement rather than supplying a generic configuration.
Our goal is consistent, practical label application that fits your production process.
Frequently Asked Questions
1. Can a square bottle be labelled automatically?
Yes. Square and rectangular bottles can be handled with an appropriately configured sticker labelling machine.
2. How does the machine maintain label position?
Controlled product movement, product guides, sensors, label dispensing and the application mechanism work together to maintain repeatable positioning.
3. Can one machine apply labels to different square bottle sizes?
This depends on the machine configuration and required bottle-size range. We can evaluate the complete range before recommending the machine.
4. Can square bottles have front and back labels?
Yes. A suitable double-side or front-and-back configuration can be selected according to the bottle and label arrangement.
5. How can I get the correct machine recommendation?
Send us your bottle photograph, bottle dimensions, label details, required label position and production requirement. Our team can evaluate the application and recommend the appropriate configuration.
Get Consistent Labelling for Your Square Bottles
If inconsistent manual labelling is affecting your packaging appearance or production time, a properly configured machine can make the process more repeatable, controlled and efficient.
Send your bottle and label details to Metson Machines. We will evaluate the application and recommend the suitable square bottle labelling solution.
